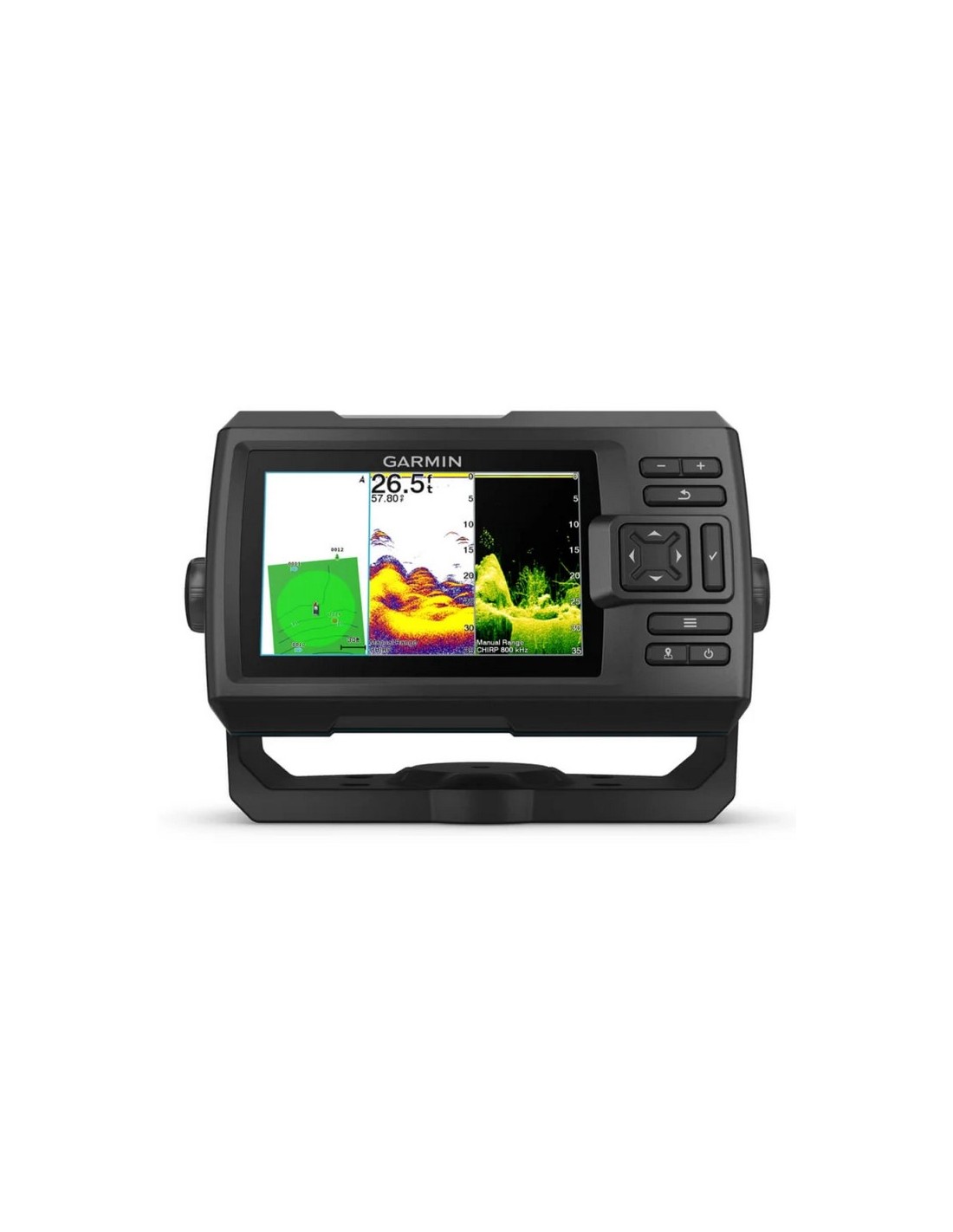

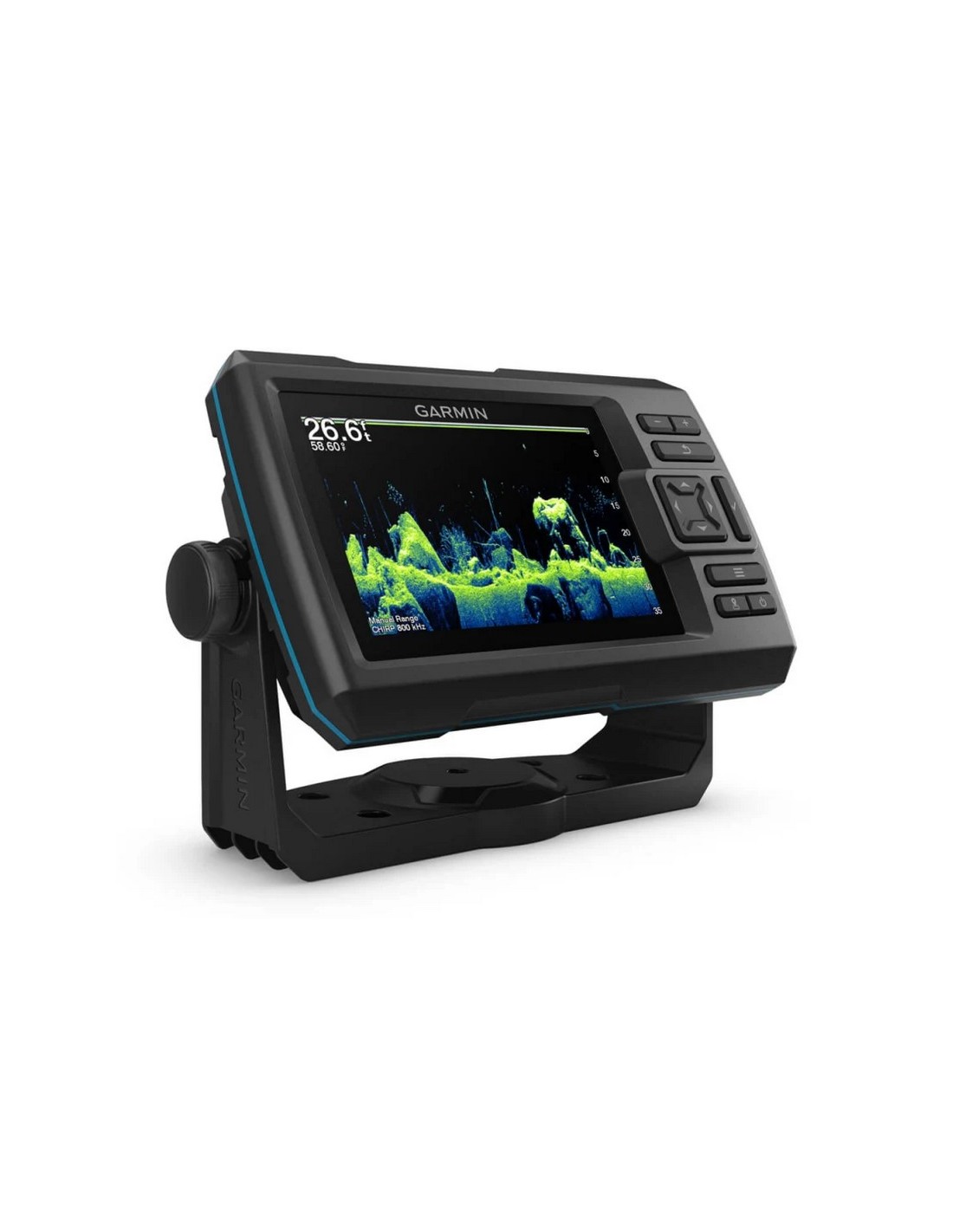

Garmin STRIKER Vivid 5cv 010-02551-02

General

Dimension    7.4’’ x 4.5’’ x 2.1’’ (18.8 x 11.6 x 5.4 cm)
Weight

1.0 lb (450 g)
Water rating    IPX7
Display Type    WVGA color
Display Size    2.6" x 4.3" (6.5 x 10.8 cm); 5.0" diag (12.8 cm)
Display resolution    800 x 480 pixels
Mounting Options    flush, tilt/swivel
Input    Keyed
Maps & Memory
Waypoints/favorites/locations    5000
Track points    50,000
Tracks    50
Navigation Routes    100
Sensors
GPS
Has built-in receiver
Supports WAAS
Optional Map Support
Garmin Quickdraw Contours
Electrical Features
Power Input    12 to 20 Vdc
Typical current draw    0.40 A
Max current draw    1.5 A
Power Consumption

4.8
Sonar Features
Displays sonar
Traditional sonar (dual frequency/beam)    Built-in
ClearVü
Frequency    Traditional: 50/77/200 kHz
CHIRP (mid and high)
ClearVü 260/455/800 kHz
Transmit power    500 W (RMS)
Bottom Lock (shows return from the bottom up)
Water Temperature Log
Connections
4-pin transducer ports    1
Fishfinder Features
Split-screen zoom
Fish Symbol ID (helps identify fish targets)
Autogain technology (minimizes clutter; maximizes targets)
Adjustable depth line (measures depth of underwater objects)
A-scope (real time display of fish passing through transducer beam)
Water temperature sensor included
Depth range shading

In the box

    STRIKER Vivid 5cv fishfinder
    GT20-TM transducer
    Power/data cable
    Tilt/swivel mount
    Hardware
    Garmin bumper sticker
    Documentation
