The KM-3A antenna is developed for sailing boats. It combines lightness and flexibility due to the quality stainless steel whip. Its elegant style fits perfectly with the boat design.
Electropolished stainless steel whip
Extra flexible
SO 239 waterproof connector
Mounting bracket supplied with the antenna
Technical specifications :
Frequenza : 156-162 MHz
Impedenza : 50 ohm
Configurazione : 1/2 λ
V.S.W.R. : < 1,5:1
Polarizzazione : Verticale
Guadagno : 3 dB
Potenza applicabile : 50W
DC ground : Sì
Materiale stilo : Acciaio inox
Connettore : SO 239 waterproof
Montaggio : Staffa in acciaio inclusa

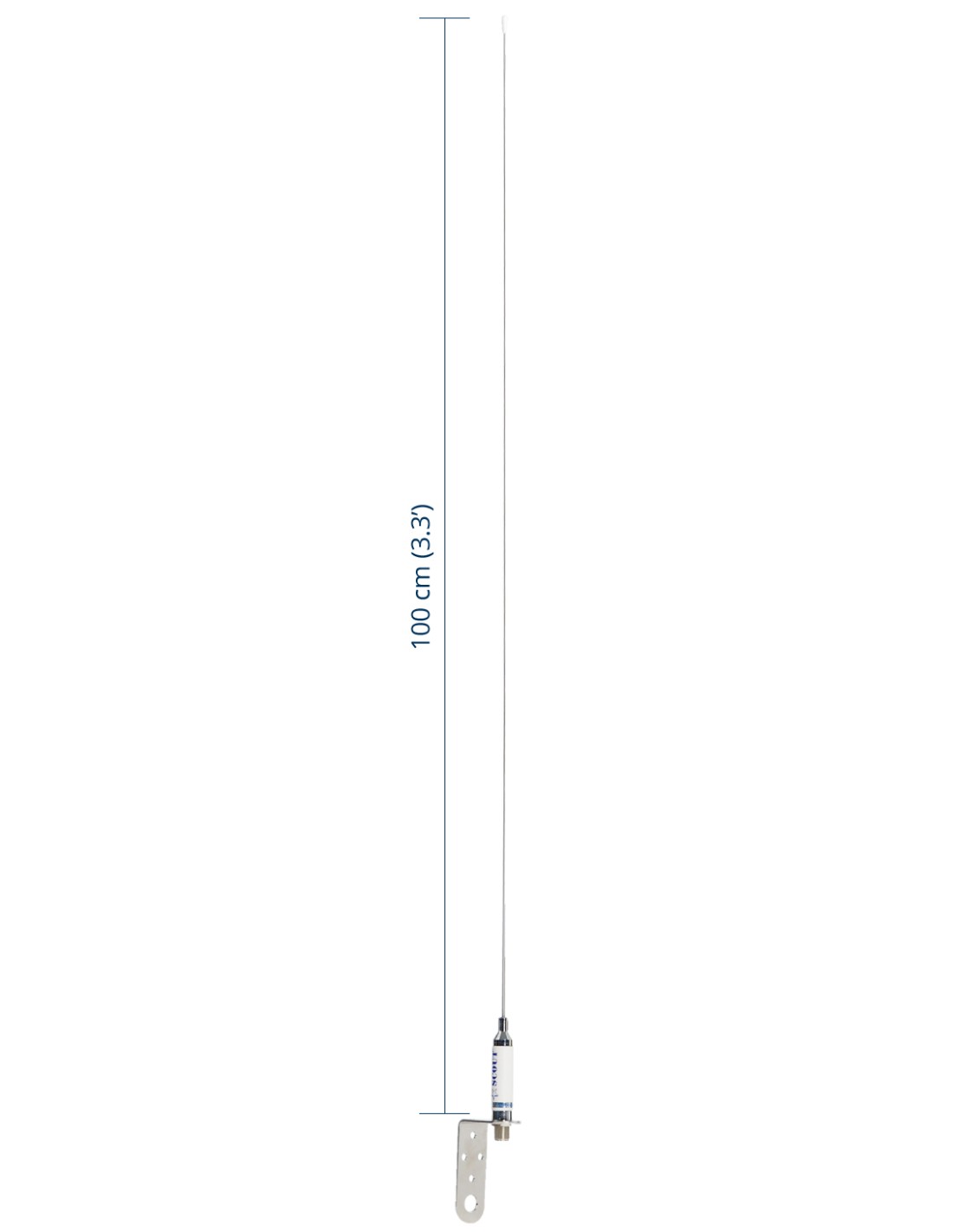

Altezza : 1,0 m (3.3′)
Peso : 0,23 kg
Codice : PF AN NVHF00012
