ICOM Handheld Vhf IC-M25 EURO

Technical Specifications

Frequency range (MHz): 156.000 – 163.425
Operating voltage: 3.7 V DC (standard BP-282 Li-Ion battery, 1590 mAh)
Battery life: 11 hours
Audio RX current consumption (Internal/External): 550mA/200mA
Operating temperature: -15° to +55°
Dimensions (W × H × D): 56.6 × 134.2 × 30.5 mm
Weight (approx.): 220g (with internal battery, antenna and clip)
Transmit power: 5 W / 1 W
Audio output: 550 mW with internal speaker / 200 mW with external speaker

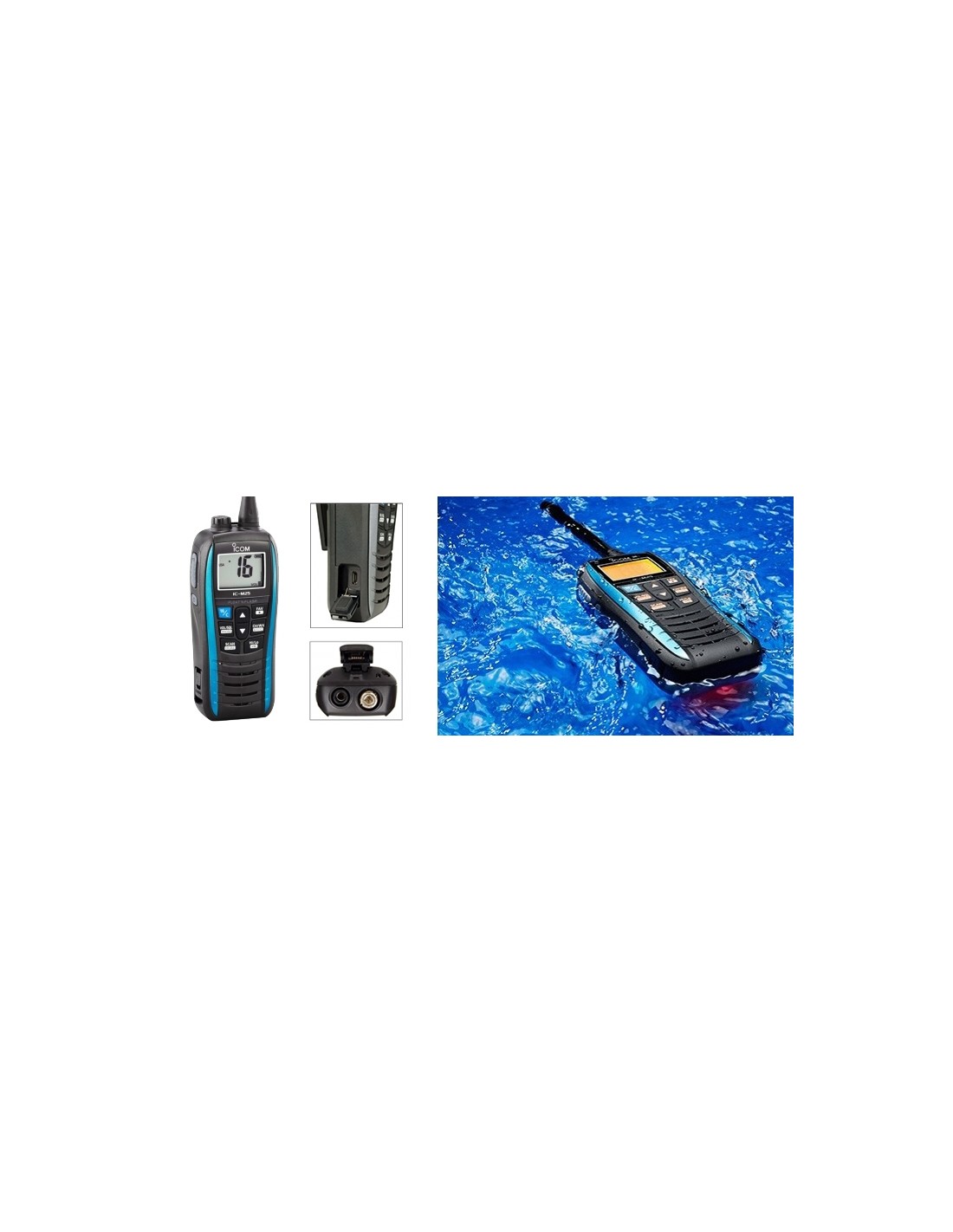

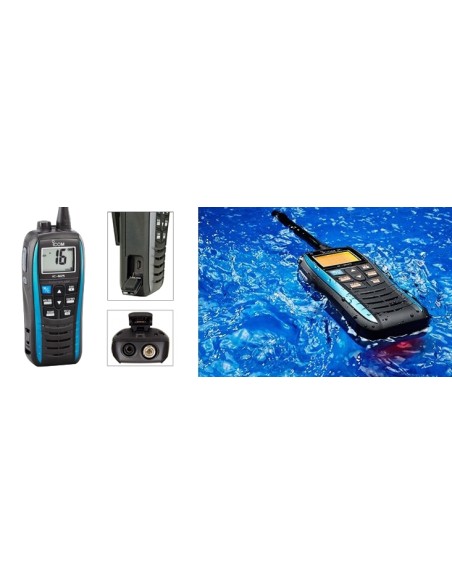

Floating: if accidentally dropped into water, the IC-M25EURO floats, the display and keypad flash intermittently and a high-brightness red LED begins to flash. The unit also floats when the HM-213 microphone (optional) is connected
Large backlit display
Backlit function keys
Instant access to channel 16
Dual and tri-watch functions
Low battery alert function
AquaQuake function to expel water from the speaker grille
Protection rating: IPX7

Contents
BP-282 Li-Ion battery (3.7V/1590 mAh) built-in
BC-217SE wall charger with micro USB
FA-SC59V antenna
MB-133 belt clip
Wrist strap
User manual

Optional accessories
BC-217SE AC adapter/wall charger with micro USB
HM-213 IPX7 microphone/speaker
MB-133 Replacement belt clip
FA-SC59V Replacement antenna
CS-M25E Programming software
OPC-478UC USB programming cable (requires OPC-1655 adapter)
OPC-1655 OPC-478UC adapter
PIB-LACCI-CH016 Coiled safety lanyard

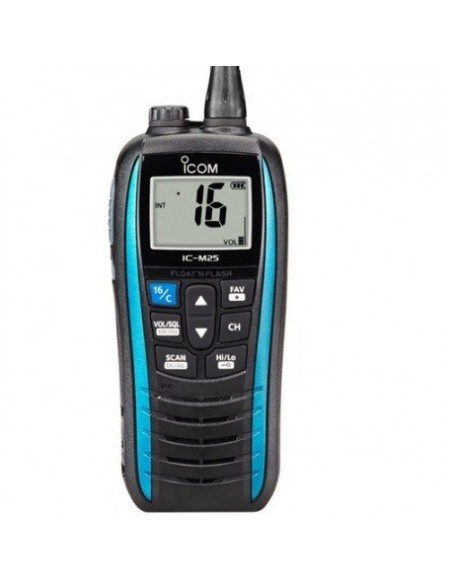

Large LCD screen, simple user interface
The IC-M25EURO’s LCD display is 30% larger than that of its predecessor, the IC-M23, allowing the channel number and icons to be displayed in a larger size.
The layout of the buttons on the front panel has been designed to ensure easy and intuitive operation.

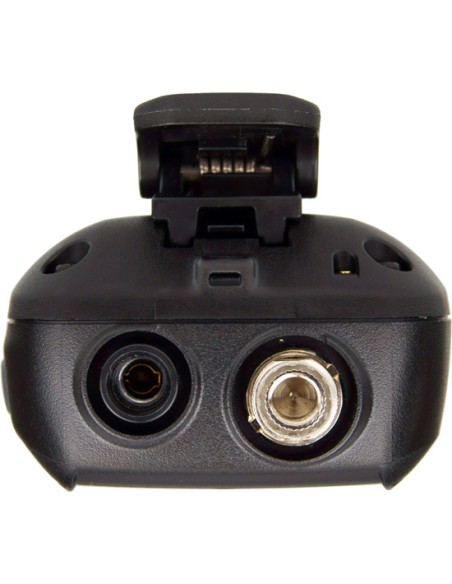

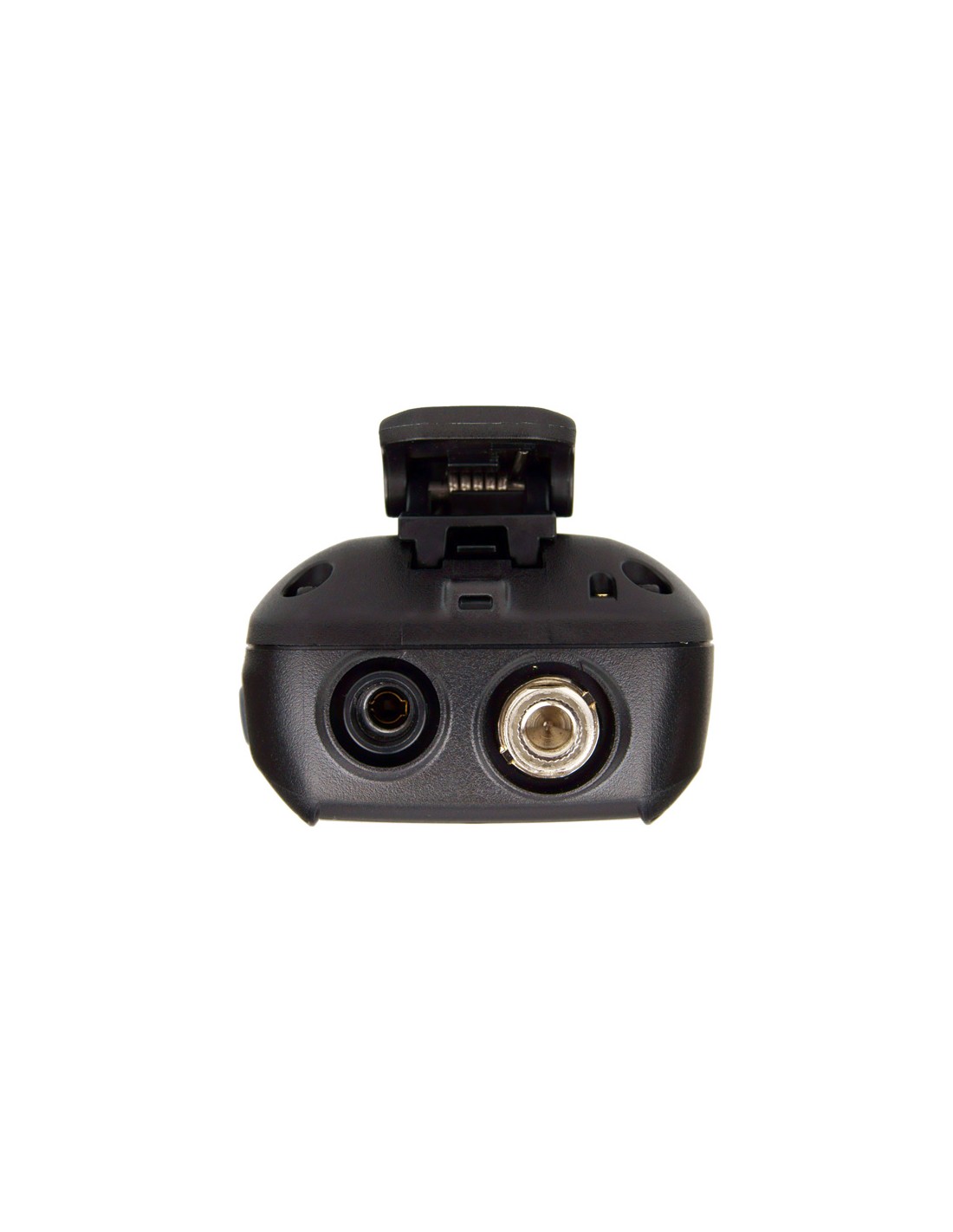

USB Charging (Micro-B USB)
The IC-M25EURO is charged via a standard USB port (Micro-B type). It is also possible to use cables with cigarette lighter socket connectors or power banks designed for charging smartphones or other devices*
The IC-M25EURO uses a 5V/1A (max) input. The use of third-party products may not always be optimal, depending on the product used.
