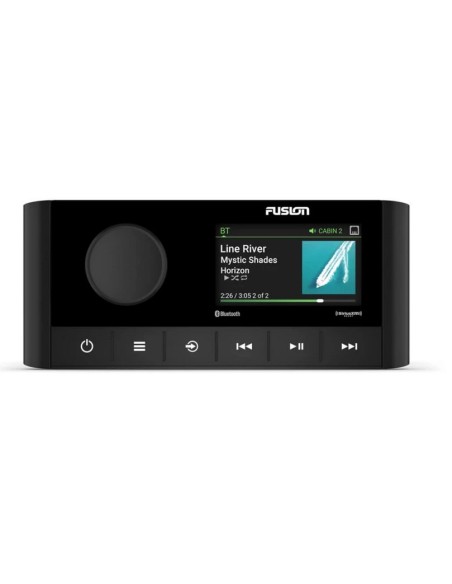

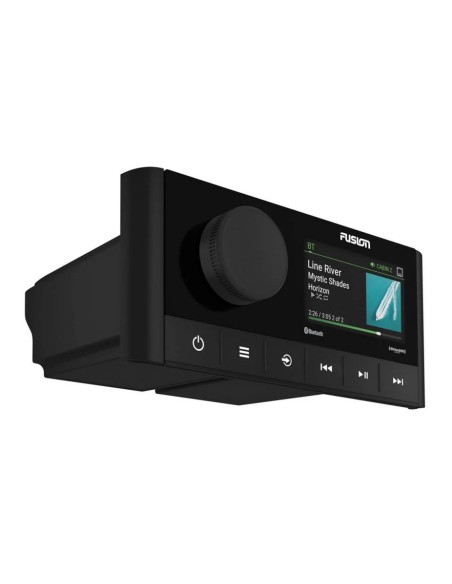

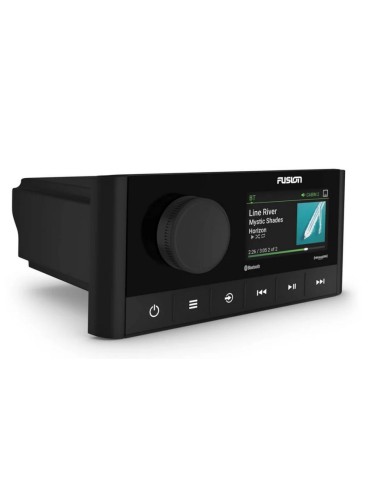

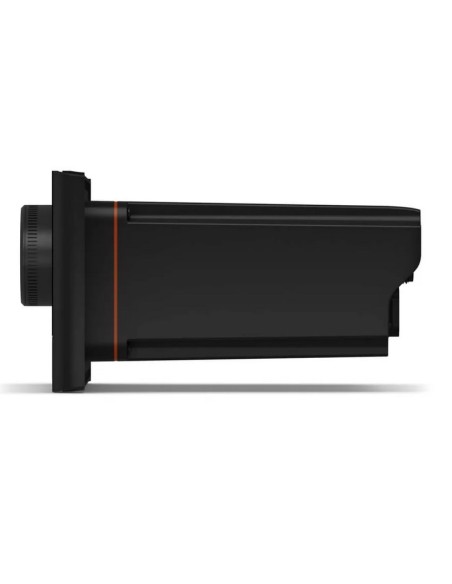

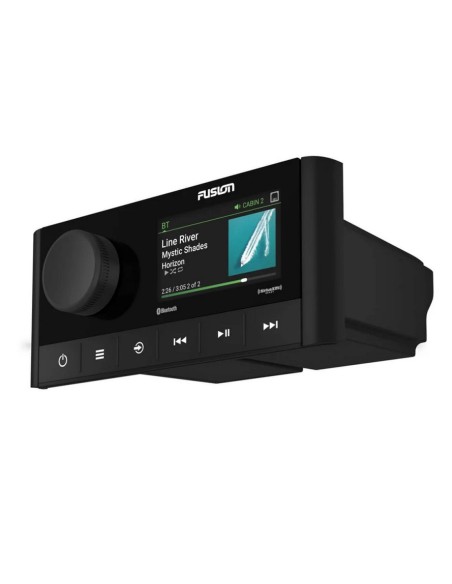

The MS-RA210 marine stereo from Fusion® is a stylish addition to your boat. Incorporating some of the Apollo™ Series’ key features, the stereo includes built-in Digital Signal Processing (DSP) technology, modern design aesthetics and advanced source options.
IPX6 AND IPX7 INGRESS PROTECTION
Designed and engineered for the harsh marine environment, the MS-RA210 stereo has an IPX6- and IPX7-rated water-resistant front panel to perform and last on board.
MODERN DESIGN AND AESTHETICS
Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy and elegant installation.
SPEED VS. VOLUME
With your stereo connected to an NMEA 2000® network with an appropriate speed sensor installed, selecting Speed vs. Volume from the stereo’s settings menu enables audio volume to be automatically adjusted based on your boat’s speed. Faster = louder; slower = lower volume. Compatible speed sources include speed over ground, speed through water, engine RPM or wind speed.
FUSION DIGITAL SIGNAL PROCESSING (DSP)
A technically superior listening experience made simple, Fusion DSP optimizes the audio signal delivered to your Fusion system to produce superior sound quality at all volume levels, in every listening environment.
EASY-TO-INSTALL DSP PROFILES
Setting up your DSP profiles is made simple with the free Fusion-Link™ app1. With just a few steps on your compatible smartphone, you can set up the preconfigured DSP profiles once and enjoy listening to high-quality audio customised for your ears and the environment.
General
Dimension 6.18" x 2.68" x 4.99" (156 x 68 x 126.6 mm)
Weight 0.77 lbs (350 g)
Water rating IPX6 and IPX7 (front panel only, when properly installed)
Display 2.7" optically bonded color LCD
Operating temperature 32° to 122° F (0° to 50° C)
Current (max) 15 A
Networking NMEA 2000® LEN 1 (50 mA)
BLUETOOTH® wireless range up to 30 ft
ANT® wireless range Up to 10 ft
Wireless frequencies/protocols BLUETOOTH®: 2.4 GHz @ +12 dBm nominal
ANT®: 2.4 GHz @ +7 dBm nominal
Audio
Amplifier Class-D (4 ohm)
Electrical Features
Power Input 10.8 - 16 VDC
Compass-safe distance 5.9" (150 mm)
Stereo Features
Peak power 200 W
Rated power output (4 ohm) 26 watts RMS x 4 @ 14.4 V input < 10% THD
Built-in Digital Signal Processing (DSP) yes (with custom DSP profile setup using Fusion-Link™ app)
Fusion-Link™ control yes (MFD, smart device and Garmin watch)
Multi-Zone™ technology 2 zones
BLUETOOTH® wireless technology
ANT® wireless technology
SiriusXM-ready
DAB+ ready
Supports NRX wired remote
Multi-language interface
Bulgarian, Chinese (Simplified), Chinese (Traditional), Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese-Brazil, Portuguese-Portugal, Slovenian, Spanish, Swedish, Thai, Turkish
Software updates USB
Sources
Supported sources
AM, FM, BLUETOOTH®, USB audio, iPhone®, iPod®, AUX x1, MTP
SiriusXM-Ready (U.S. only, requires optional SiriusXM Connect vehicle tuner)
DAB+ ready (available in Europe and Australia only)
Connections
Auxiliary inputs (RCA) 1
NMEA 2000® ports 1
USB 2.0 ports 1
SiriusXM ports 1
AM/FM ports (Motorola antenna connector) 1
Speaker connections 4 (2 zone amplified)
RCA pre-out (left, right and subwoofer) 2 zones (requires external amplification)
Line out 2 (L + R per zone, requires external amplification)
Subwoofer out 2 (1 mono output per zone, requires external amplification)
